Coolant Reservoir Replacement in 2006 Saturn Ion

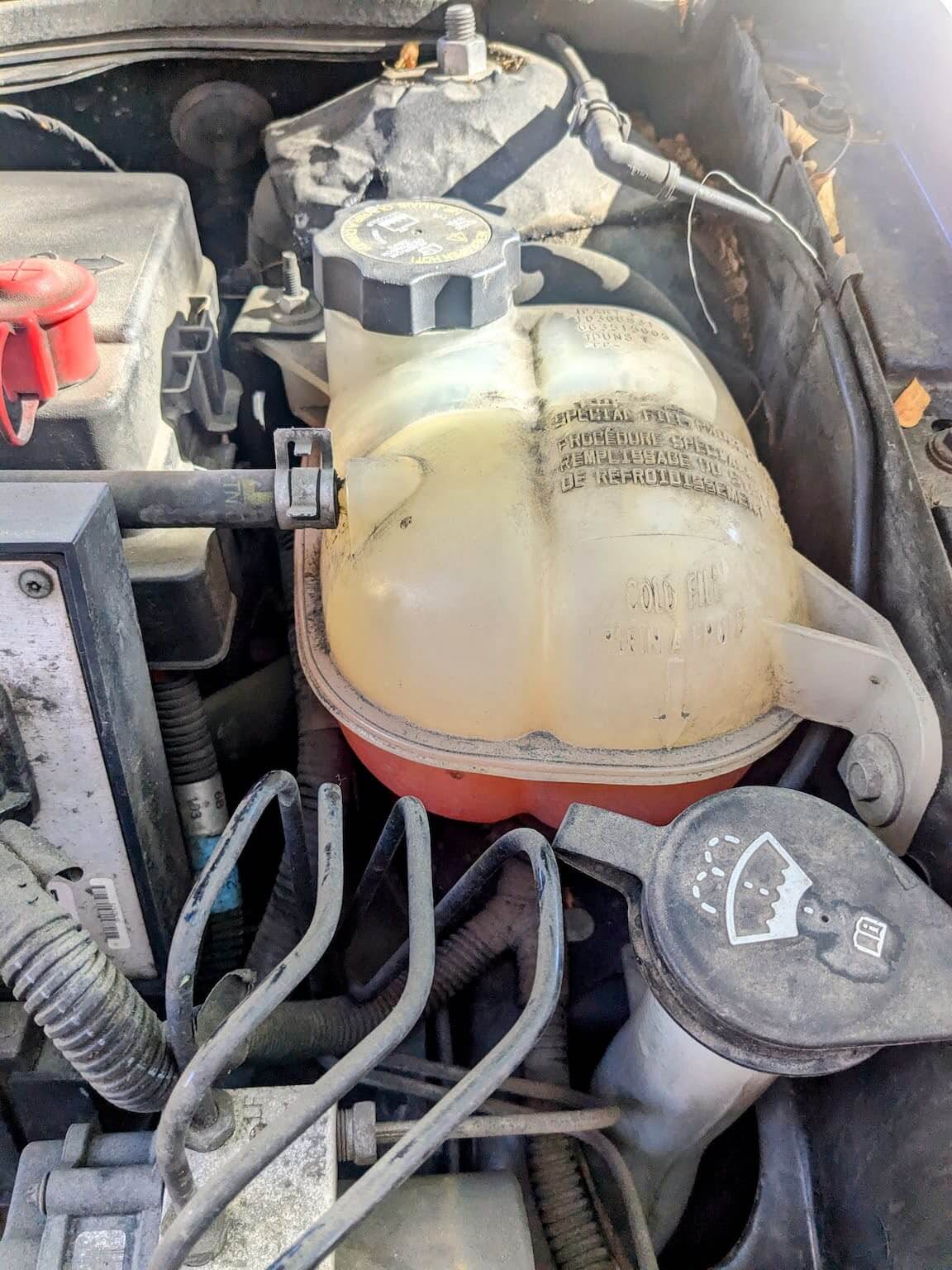

This week, I replaced the coolant tank in my 2006 Saturn Ion after dealing with the coolant light on the dashboard being constantly illuminated for the past year, accompanied by a jarring ding every time I started the car.
After investigating, I found that this issue is often caused by a faulty sensor inside the tank since the actual coolant level was fine. The “easiest” course of action is replacing the entire reservoir.

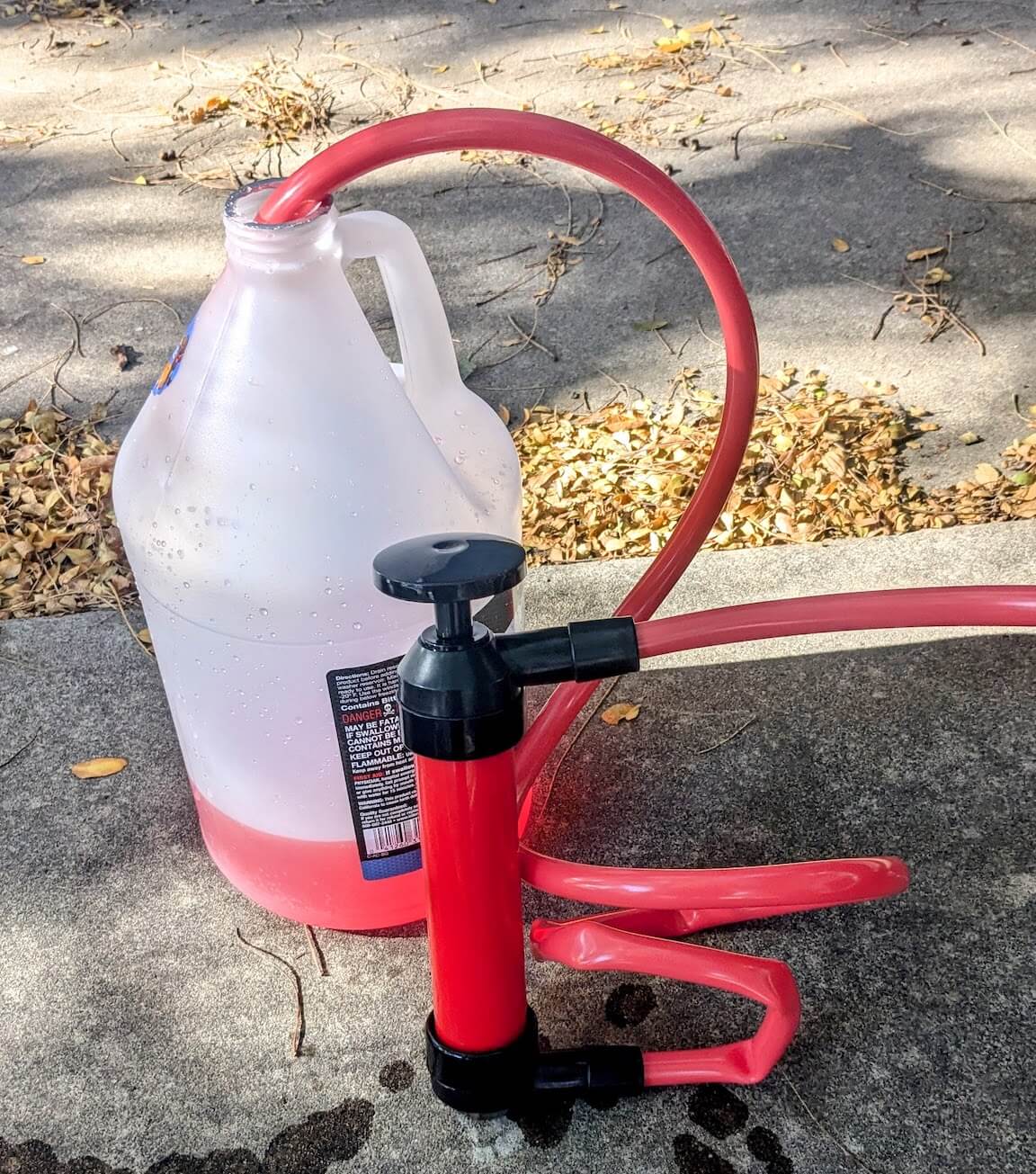

I bought an OEM radiator surge tank and followed this video, but instead of dismantling additional parts to drain the tank through the valve, I pumped the fluid out of the old tank with this syphon pump. The video’s method would also have required buying a 7mm socket and a petcock socket.
Tools needed:
- 10mm socket
- 13mm socket
- Long socket extension
- Pliers for the hose clamps
- A container to drain the fluid into (I used a clean windshield wiper fluid bottle)
Biggest challenges:
- Moving hose clamps on and off with pliers. Buying hose clamp pliers next time would be worth it!

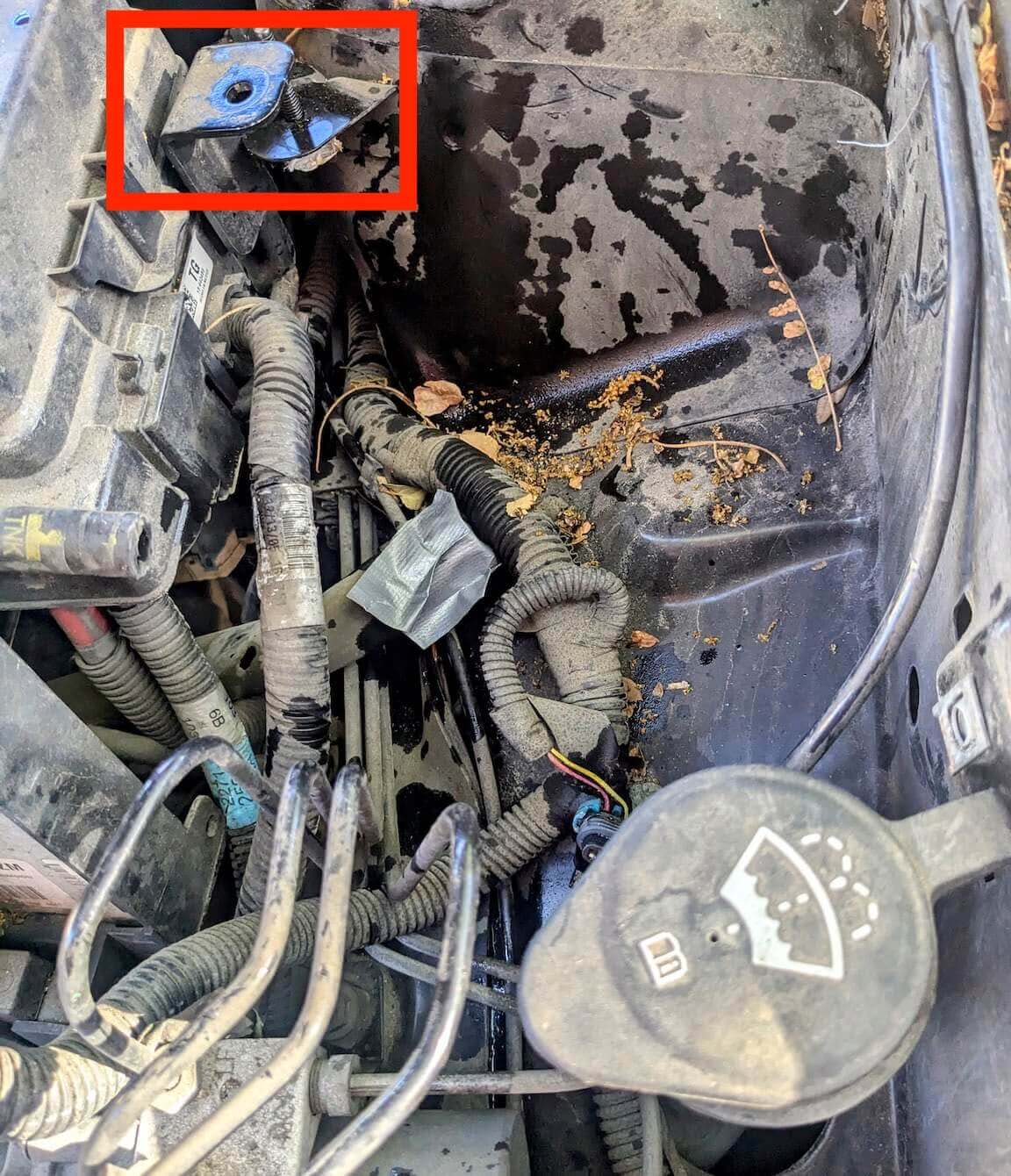

- Getting the bracket in the photo below back over the bolt was beyond my ability.
Time spent: 3 hours. It was harder than I expected.
Money spent: $116.42 ($102.04 for reservoir + $14.38 for pump)
Successfully fixed the coolant light? Yes!
